IoT Current and Voltage Sensor

IoT Current and Voltage Sensor with WiFi Interface and Cloud Connection.

Features

Multisensor system: DC and AC Current (Hall, shunt, CT), voltage, temperature
WiFi interface with cloud connectivity
Transceiver extensible (LoRa, ZigBee, CAN)
Galvanically isolated split-core design
Contactless Melexis 91208 Hall sensor

Applications

Internet of Things (IoT), Internet of Everything (IoE)
Monitoring of battery driven equipment
Workplace safety, factory monitoring
Energy efficiency / cost monitoring
Solar power
Prototyping, development, test platform

Description

The IoT Current and Voltage Sensor consists of four sensors: (i) contactless Hall or CT current sensor, (ii) shunt resistor based current sensor (iii) battery voltage sensor, and (iv) temperature sensor. The four sensor signals are read by analog-to-digital converters (ADCs), processed by a programmable state-of-the-art microcontroller, and uploaded to the cloud via WiFi interface. The connectivity of the module is extensible to CAN, LoRa, GSM, Zigbee, Bluetooth, and Ethernet interfaces.

A particular feature of the product is its easy and safe installation without interrupting the primary current wire by using contactless galvanically isolated Hall sensor technology. This additionally allows the module to be used for hassle-free retrofit application.

The device is supplied directly with 5V…60V DC from the primary battery and optionally can be operated with a secondary 9V battery for autonomous use.

Characteristics

Parameter	Typical Value	Unit
Primary input current range (DC and AC)	±5…±2000	A
Voltage measurement range (DC and AC)	±1…±1000	V
Measurement accuracy	1.0	%
Operation temperature range	-40…85	°C
Supply voltage	12 (5…60)	VDC
Battery supply for autonomous use	9	VDC
Output refresh time	10.0¹ 100.0²	ms

¹ wired connection
² wireless connection

BLOCK DIAGRAM (SINGLE-CHANNEL)

BLOCK DIAGRAM (MULTI-CHANNEL)

MODULE VARIANTS

The IoT Current and Voltage Sensor module is available in several variants:

Single-channel sensor frontend
Multi-channel sensor frontend, e.g., 4-channel solution for the solar applications
Interface options include WiFi, CAN, LoRa, GSM, Zigbee, Bluetooth, Ethernet
Power supply directly from your 12V..48V batteries
Autonomous supply with separate 9V battery
Hall, CT, or shunt current sensor technologies available

Single-Channel

Multi-Channel

TYPICAL APPLICATIONS

Battery-Driven Fleet and Tools

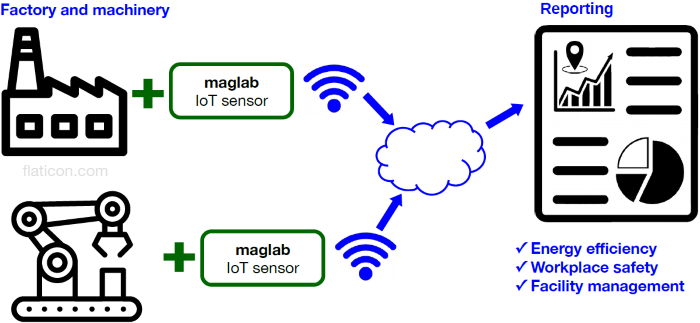

Workplace Safety / Energy Efficiency

Renewable Energy, Solar Power, and Smart Grid
